Stationary Hydraulic Concrete Placing Boom
INTRODUCTION
Stationary concrete placing boom is the distributing equipment for concrete pouring specially designed and produced for engineering construction of railway beam field, nuclear power and so on; mobile concrete placing boom, of three sections of folding arm in the "Z" shape, can be rotated all around, pitched and folded, its amplitude can be changed, realizing three-dimensional and full range of pouring within the length of cantilever crane, leaving no dead space, also, it can easily realize concrete pouring in all sorts of construction operation, including wall, tube, column and pile.
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

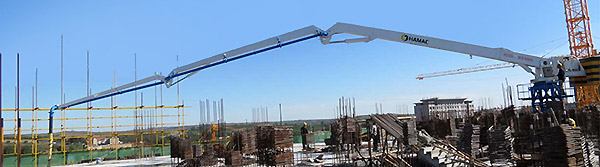

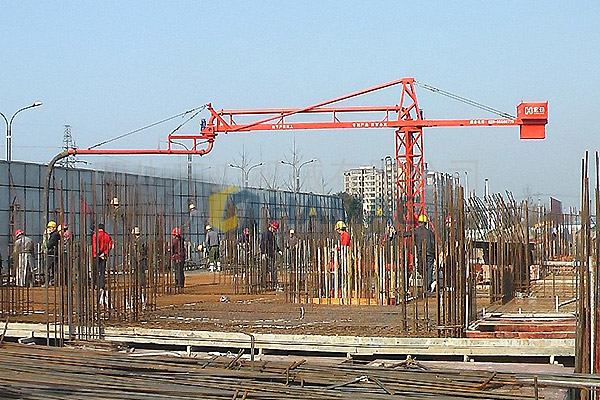

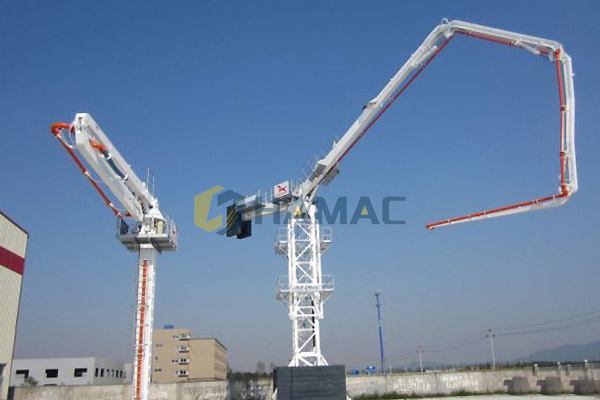

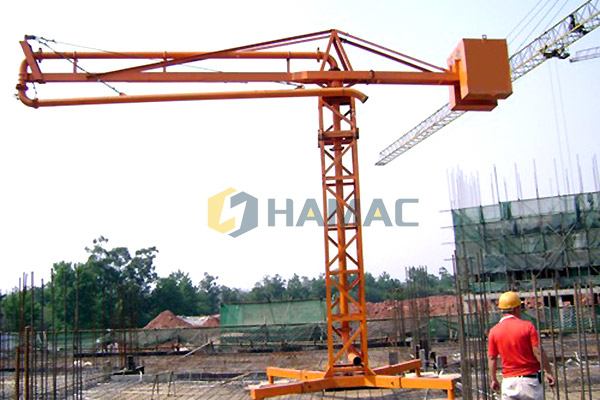

Detailed Photos
Performance
1. Stationary concrete placing boom is tributing equipment for concrete pouring specially designed and produced for engineering
2. construction of railway beam field, nuclear power and so on.
Manufacturing Process
Specification
| Item | HGY13 | HGY15 | HGY17 | HGY18 | HGY21 | HGY24 | HGY28 | HGY32 |
|
Max. placing radius (m) |
13 | 15 | 17 | 18 | 21 | 24 | 27.45 | 31.7 |
| Big arm length (m) | 3.7 | 6 | 6.66 | 7.66 | 11 | 12 | 12.545 | 14.5 |
| Big arm elevation (°) | -2～84.4 | 0～70 | 0～65 | 0～65 | 0～65 | 0～65 | 0～65 | 0～65 |
|
Medium arm length (m) |
4.52 | 5 | 5.73 | 5.73 | 6.5 | 7.5 | 8.82 | 9.2 |
|
Medium arm elevation (°) |
0～180 | 0～180 | 0～180 | 0～180 | 0～180 | 0～180 | 0～180 | 0～180 |
| Small arm length (m) | 4.78 | 4 | 4.61 | 4.61 | 3.5 | 4.5 | 6.085 | 8 |
| Small arm elevation (°) | 0～180 | 0～180 | 0～180 | 0～180 | 0～180 | 0～180 | 0～180 | 0～180 |
| Hose length (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
|
Concrete delivery pipe (mm) |
ø125×6 | ø 125×6 | ø 125×6 | ø 125×6 | ø 125×6 | ø 125×6 | ø 125×6 | ø 125×6 |
| Tail Rotary radius (m) | 2.72 | 2.81 | 3.51 | 3.93 | 3.9 | 3.9 | 3.9 | - |
| Total Power(Kw) | 4 | 4 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 15 |
|
System Pressure (Mpa) |
24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Rotary speed (r/min) | 0.3—0.8 | 0.3—0.8 | 0.3—0.8 | 0.3—0.8 | 0.3—0.8 | 0.3—0.8 | 0.3—0.8 | 0.3—0.8 |
| Rotary range (°) | 0～360 | 0～360 | 0～360 | 0～360 | 0～360 | 0～360 | 0～360 | 0～360 |
| Mast section (m) | 1.2×1.2×3 | 1.2×1.2×3 | 1.2×1.2×3 | 1.2×1.2×3 | 1.2×1.2×3 | 1.2×1.2×3 | 1.2×1.2×3 | 1.2×1.2×3 |
|
Bare machine weight (kg) |
2500 | 3000 | 4800 | 5200 | 5900 | 6500 | 7000 | |
| Balance weight (kg) | 2×900 | 2×1100 | 2200 | 2×1100 | 3×2000 | 3×2000 | 4×2000 | - |
| Control mode | Panel/Wireless remote control | |||||||
